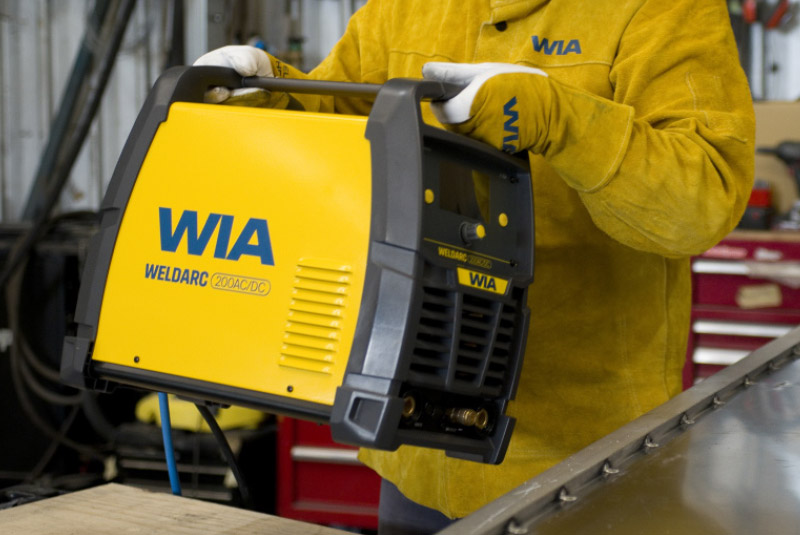

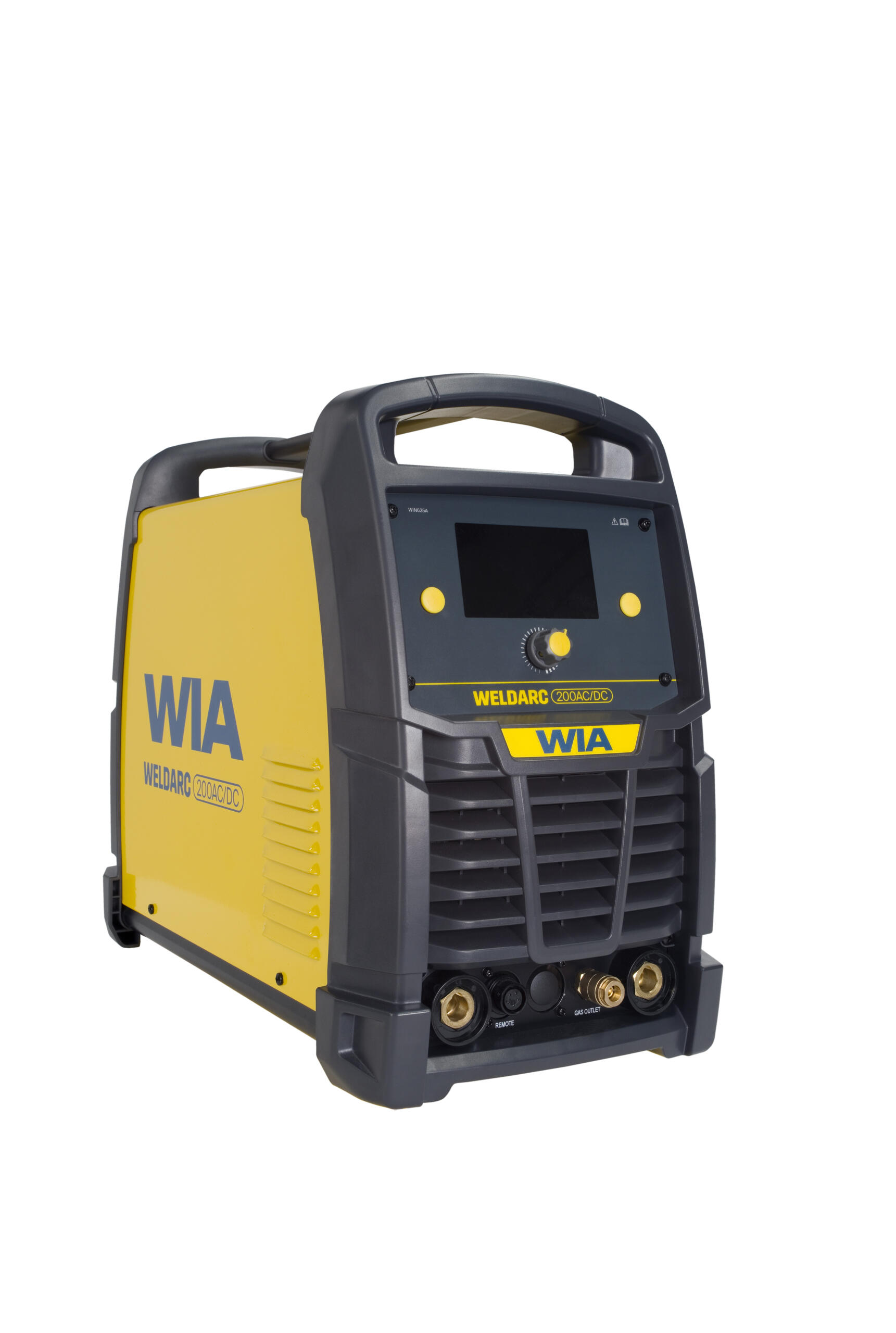

WIA Weldarc 200AC/DC Tig

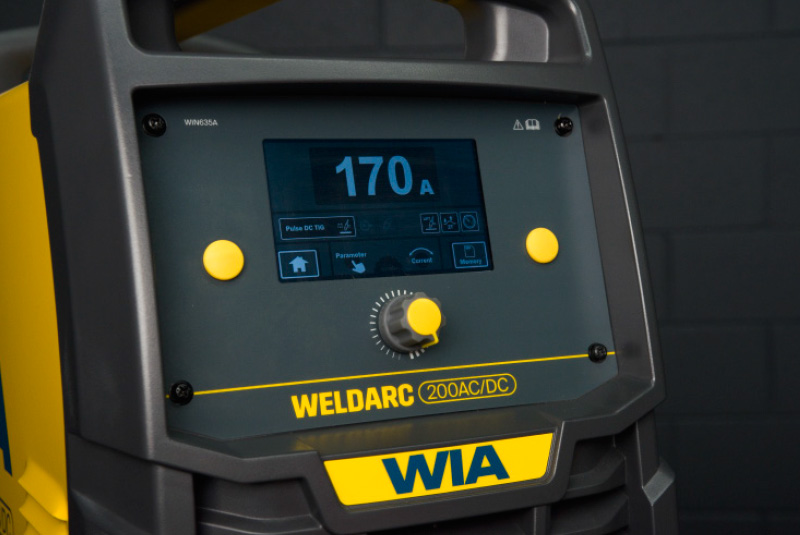

WIA Weldarc 200 AC/DC TIG Welder is for intermediate to professional Stick/TIG welders looking for AC TIG capabilities for high precision aluminium welding. The Weldarc 200 AC/DC features a digital LCD interface for for quick setup through pre-set parameters and memory selection. The Weldarc 200 AC/DC also comes built with HF Start and Pulse TIG functionality and provides premium quality weld results. It also supports foot control adjustment for enhanced control capabilities. Built with quality components and manufactured with 3 years warranty, the Weldarc 200 AC/DC is an easy choice for those looking for a well-priced, professional grade Stick/TIG welder that doesn’t compromise on results.
Machine Specification
- Primary Voltage: 240 VAC-50/60Hz
- Rated Primary Current: 11 Amps
- Max Primary Current: 20 Amps
- Recommended Generator Power: 5kVa
- Supply Plug: 15 Amp
- Weight: 17kg
Stick Specification
- Output Range: 10A/20.4V-160A/26.4V
- Rated Output @ 40°C (10min): 160A/26.4V @ 30% 114A/24.6V @ 60% 88A/23.5V @ 100%
TIG Specification
- Output Range: AC:15A/10.6V-200A/18V DC:10A/10.4V-200A/18V
- Rated Output @ 40°C (10min): 200A/18V @ 30% 142A/15.7V @ 60% 110A/14.4V @ 100%
- Material Thickness Range: Welds up to 8mm aluminiun plate, single pasS
PACKAGE INCLUDES:
Work Clamp: 3m
Industrial Twist Lock Electrode Holder: 3m
Brand
WIA
