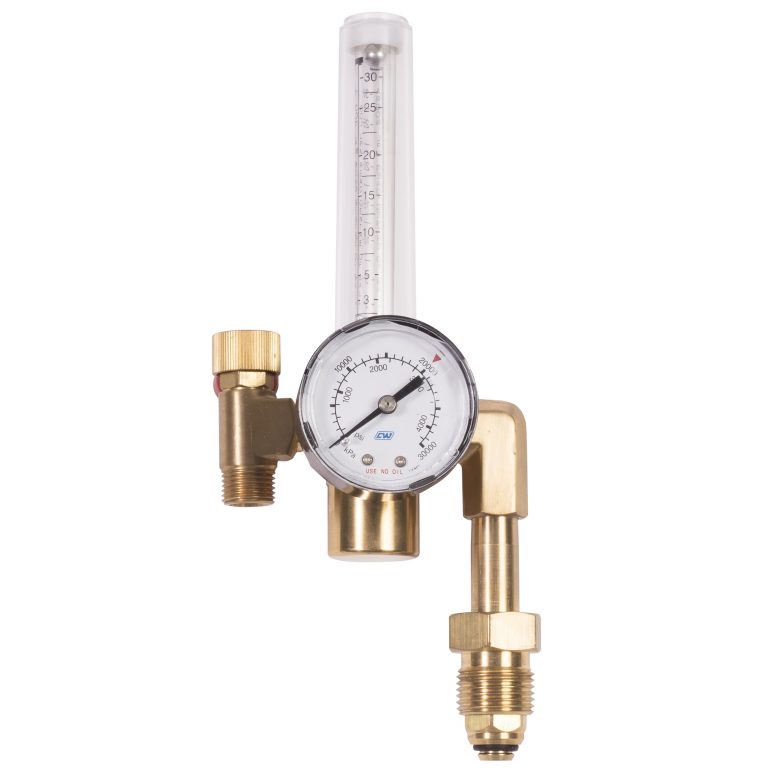

The 201030 and 201031 Regulator/Flowmeters provide accurate indication of flow rate of shielding gases for MIG and TIG welding processes. The Regulator/Flowmeters have been designed for TIG processes and for MIG, Short Arc and Spray Arc applications and are calibrated for O to 30 lpm.

The metering ball is stainless steel. They are constructed with a machined brass body and cap, are back pressure compensated and have a self-reseating relief valve ? not designed to protect down stream equipment.

Maximum 30 LPM Flow Rate
Maximum Inlet Pressure 20,000kPa
Robust brass body and fittings
Failsafe against over pressure
Calibrated flow rates at 345 kPa inlet pressure.
0 to 30 lpm (Vertical / Side Inlet)
Inlet connection 5/8? BSP ? 18 Type 10
Outlet connection 5/8? ? 18 UNF ? RH
