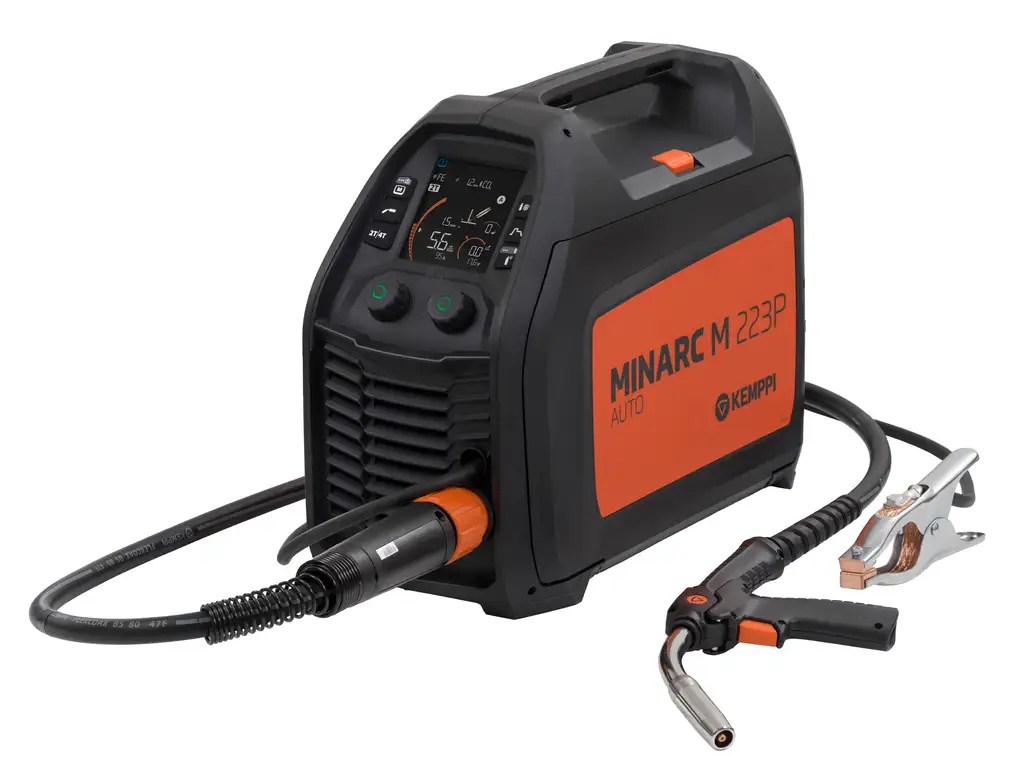

Kemppi Minarc M 223P Auto GM AU 220A Pulse MIG Welder – MIM223PGMAU

The Kemppi Minarc M 223P Auto GM AU MIM223PGMAU combines high-quality Pulse MIG welding performance with exceptional portability, making it an excellent professional welding machine for workshops, fabrication, automotive repairs, maintenance and mobile site work.

Delivering up to 220A at 20% duty cycle, the Minarc M 223P provides impressive welding capacity from a compact single-phase power source. At higher duty cycles, it delivers 160A at 60% and 140A at 100%, providing strong continuous welding performance for demanding jobs.

One of the major advantages of the MIM223PGMAU is its Pulse MIG capability. Pulse welding provides better control of heat input and metal transfer, helping reduce spatter and improve weld appearance, particularly when welding materials such as aluminium and stainless steel.

The machine provides three versatile operating modes:

• Manual MIG/MAG
• Synergic 1-MIG
• Pulse MIG

The Minarc M 223P Auto GM AU also includes an extensive selection of 48 welding curves and five memory channels, giving professional welders greater flexibility when working with different materials, wire types and welding applications.

Unlike the standard Minarc M 223 Auto GM AU, which has a built-in torch connection, the 223P uses a Euro torch connector. This allows MIG torches to be removed, replaced or upgraded easily and makes the machine much more flexible for professional workshop use.

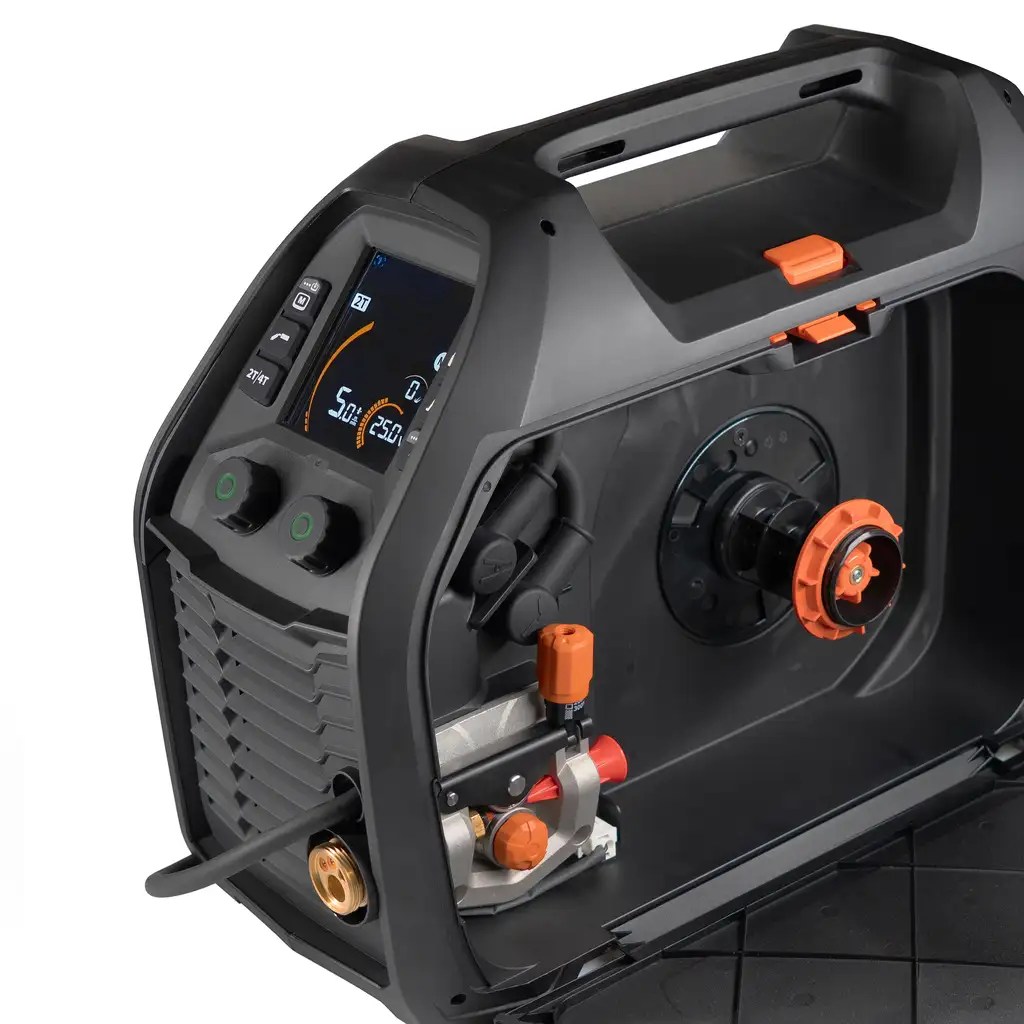

Its digital two-roll wire-feeding system supports wire speeds from 0.5–18 m/min and filler wire sizes between 0.6 and 1.2 mm, depending on the wire material. The machine accepts wire spools up to 5 kg / 200 mm diameter.

At just 10.85 kg, the Kemppi Minarc M 223P Auto GM AU provides premium Pulse MIG performance in a highly portable package. It is also generator compatible, with Kemppi recommending a minimum 8 kVA generator.
