ESAB Warrior 500i CC/CV Power Source – 0465350885

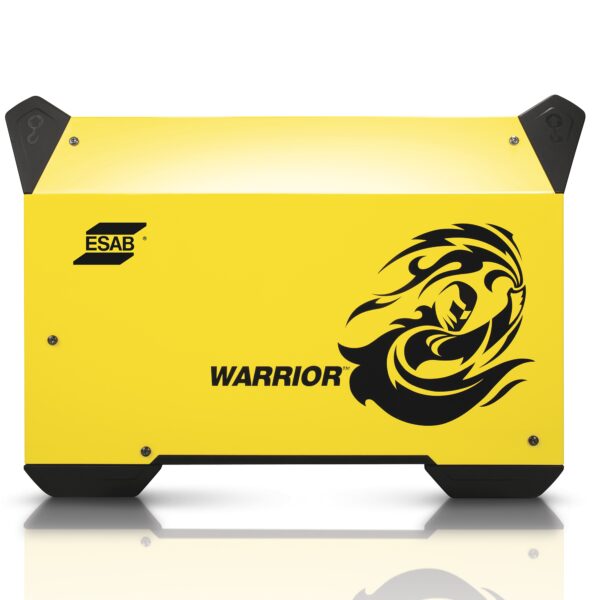

ESAB Warrior 500i CC/CV Power Source

The ESAB Warrior 500i CC/CV Power Source is a powerful and energy-efficient multi-process welding machine designed to handle a range of applications, including MIG, TIG, Stick, and Flux-Cored welding. This inverter-based unit delivers up to 500 amps at a 60% duty cycle, providing outstanding arc performance and significant energy savings in a compact, portable design. Built to be rugged and durable with an IP23 rating, the Warrior 500i is perfect for both indoor and outdoor use in tough environments. Its intuitive user interface, equipped with glove-friendly knobs, ensures quick and easy adjustments, making it accessible for all users.

Key Features:

• Multi-Process Capability: Supports MIG, TIG, Stick, and Flux-Cored welding.
• High Output: Delivers 500 amps at a 60% duty cycle for extended welding applications.
• Energy Efficient: Advanced inverter technology ensures optimal power usage and energy savings.
• Rugged Design: Built to withstand challenging environments with IP23 rating for outdoor and indoor use.
• User-Friendly Interface: Clear, intuitive controls with glove-friendly knobs for easy setup and operation.

Specifications:

• Mains Supply: VAC, 3 phase 50/60Hz (380-400-415, +/-10%)
• Mains Cable: Ø 4×6 mm²
• Fuse (Motor Start Type or Circuit Breaker Type C): 32A
• Maximum Load: 100% duty cycle A/V, 3ph: 400/36 | 60% duty cycle A/V, 3ph: 500/40
• Current Range: MIG/FCAW: 16-500A | Stick (MMAW): 16-500A | TIG: 5-500A
• Open Circuit Voltage: 78V
• Idle Power: 120W
• Efficiency at Max. Current: 88%
• Enclosure Class: IP23
• Dimensions: 712L x 325W x 470H mm
• Weight: 52 kg
• Operating Temperature: -10 to +40°C
