ESAB Warrior 500i CC/CV Package W1009660

ESAB Warrior 500i CC/CV Welding Package

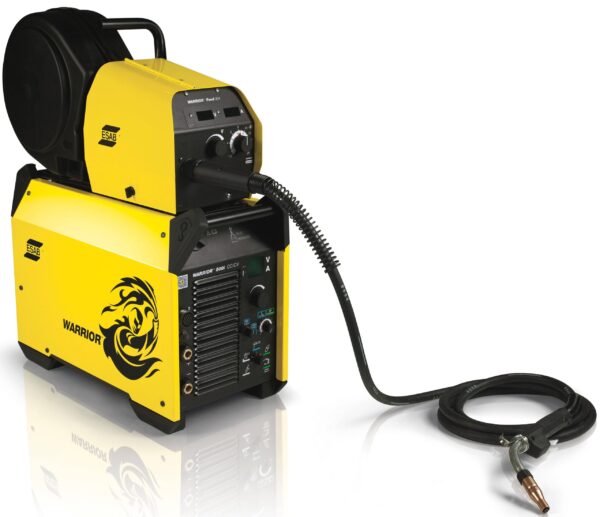

The ESAB Warrior 500i CC/CV Welding Package combines outstanding arc performance with energy efficiency, delivering up to 500 amps at a 60% duty cycle. This multi-process inverter welder is ideal for MIG, TIG, Stick, and gouging applications, providing the simple functionality welders need in a compact, portable, and rugged unit. Designed to endure tough environments with an IP23 rating, the Warrior 500i is perfect for both indoor and outdoor use. Its user-friendly interface, featuring glove-friendly knobs, ensures quick and easy adjustments for all users. The package includes the Warrior Feed 304, trolley, cables, and a MIG torch, making it a complete welding solution.

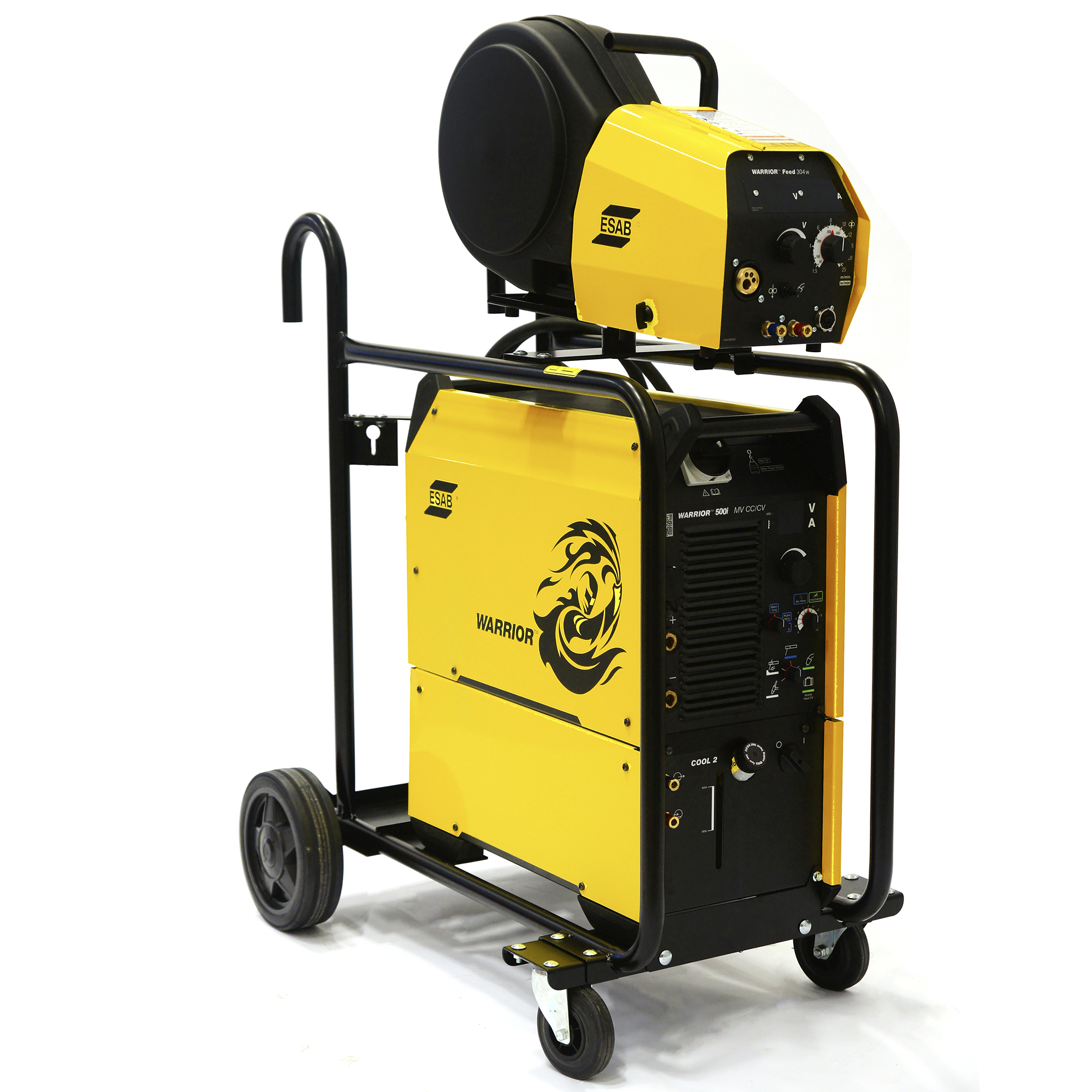

Package Includes:

• ESAB Warrior 500i CC/CV (0465350885)
• ESAB Warrior Feed 304 (0465250881) with a power supply of 42VAC, 18 kg wire spool capacity, and IP23 enclosure class.
• ESAB Trolley (0465510880)
• 10m Interconnection Cables (0459836882)
• Tweco 4, 3.6m PSF 405 MIG Torch (OTWX415/3545)

Key Features:

• Multi-Process Capability: Supports MIG, TIG, Stick, and gouging welding.
• High Performance: Delivers 500 amps at a 60% duty cycle for versatile applications.
• Energy Efficient: Advanced inverter technology ensures optimal energy savings and power output.
• Rugged Design: IP23 rating for both outdoor and indoor use in tough environments.
• User-Friendly Interface: Intuitive controls with glove-friendly knobs for easy setup and operation.

Specifications:

• Mains Supply: VAC, 3 phase 50/60Hz (380-400-415, +/-10%)
• Mains Cable: Ø 4×6 mm²
• Fuse (Motor Start Type or Circuit Breaker Type C): 32A
• Maximum Load: 100% duty cycle A/V, 3ph: 400/36 | 60% duty cycle A/V, 3ph: 500/40
• Current Range: MIG/FCAW: 16-500A | Stick (MMAW): 16-500A | TIG: 5-500A
• Open Circuit Voltage: 78V
• Idle Power: 120W
• Efficiency at Max. Current: 88%
• Enclosure Class: IP23
• Dimensions: 712L x 325W x 470H mm
• Weight: 52 kg
• Operating Temperature: -10 to +40°C

Warrior Feed 304 Specifications:

• Power Supply: 42VAC
• Wire Spool Capacity: 18 kg
• Max. Spool Diameter: 300 mm
• Wire Dimensions: Steel: 0.6-1.6 mm | Stainless Steel: 0.6-1.6 mm | Aluminium: 0.8-1.6 mm | Cored Wire: 0.9-1.6 mm
• Enclosure Class: IP23
• Dimensions (Including Bobbin Cover): 675L x 264W x 218H mm
