CIGWELD – WeldSkill 180 Tradepack

CIGWELD – WeldSkill 180 Tradepack

The WeldSkill 180 is a single phase welding inverter with a user-friendly control panel, a practical push-button operation for mode selection, clearly visible LED indicators and sturdy large control knob. TradePack includes: Carry Bag, WeldSkill Helmet (Blue), WeldSkill Gloves, Chipping Hammer, Wire Brush, 1Kg GP Electrodes

Affordable, compact and light-weight, this unit is a great addition to the shed ensuring the ultimate portability for the Home Handyman, Tradesman, Farmer or Maintenance Worker.

In addition to its appealing design and functional features, the WeldSkill 180 provides the added reassurance of a high-quality welding inverter that complies with Australian Standards.

Simply plug it into any standard 15 Amp power point and get welding right away!

Twist lock electrode holder
3 Year Warranty
Rugged case with carrying handle and carry strap
4m long electrode holder and work leads
Push button weld mode selection switch with LED indicators

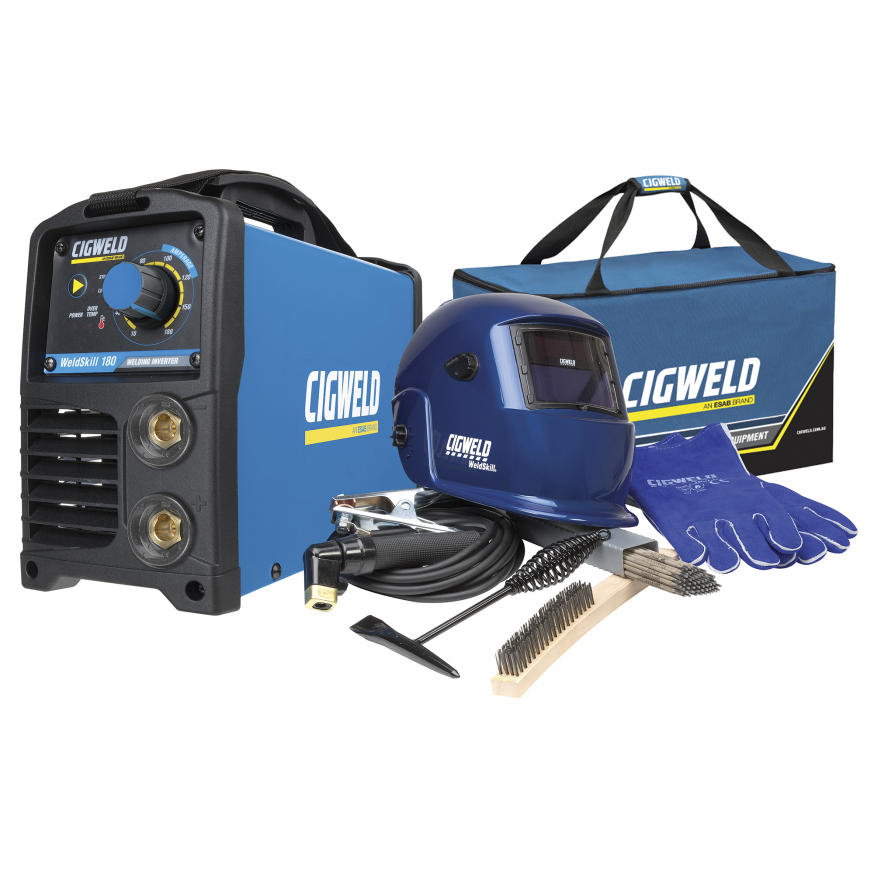

TRADEPACK Includes:

WeldSkill 180 Inverter
Carry Bag
WeldSkill Helmet (Blue)
Welding Gloves
Chipping Hammer
Wire Brush
1Kg GP Electrodes

SPECIFICATION

Dimensions
220H x 130W x 340D mm

Weight
5.8kg

Cooling
Fan Cooled

Welder Type
Stick and Lift TIG Multi Process Inverter Power Source

Australian Standard
AS 60974.1-2006 / IEC 60974-1

Number of Phases
Single Phase

Nominal Supply Voltage
240V AC ? 10%

Nominal Supply Frequency
50/60 Hz

Current Range
10-180A

Open Circuit Voltage
78V

Factory Fitted Supply Plug
15 amps

Duty Cycle
STICK (MMAW): 180A @ 20% | TIG (GTAW): 180A @ 40%

Protection Class
IP21S
