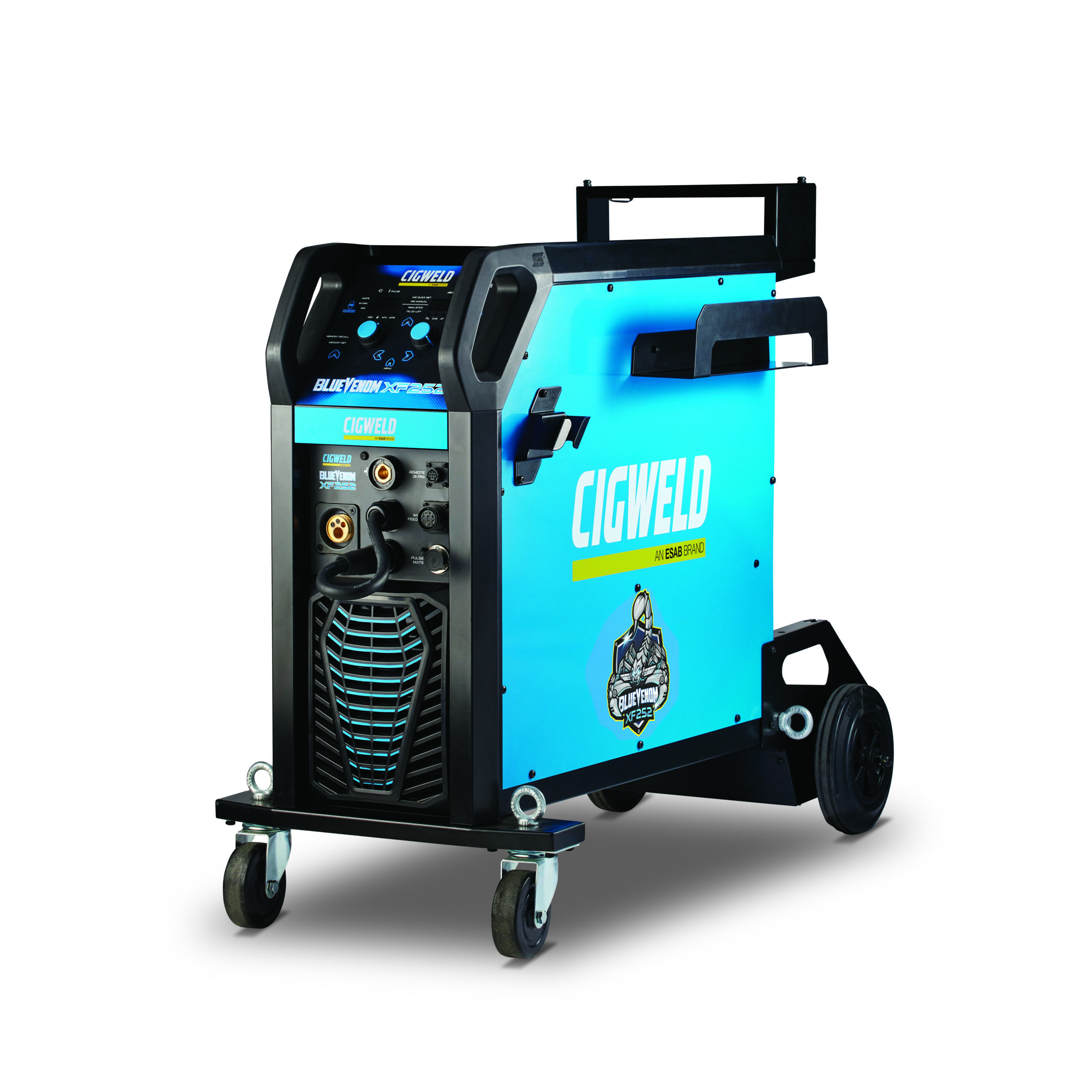

Cigweld BlueVenom XF252 W1400252
The Cigweld BlueVenom XF252 is a 3-in-1 multi-process welding inverter engineered for precision, reliability, and versatility. Designed and tested in Australia, the XF252 delivers outstanding performance across MIG, STICK (MMA), and TIG DC-Lift welding. Compact yet powerful, it is ideal for tight spaces, modular arc stations, and demanding industrial applications.
Whether you are working on fabrication, structural steel, automotive repair, or heavy industry, the XF252 ensures professional-grade welds with easy setup and consistent results.
Key Features & Benefits
✅ Multi-Process Capability
- MIG: QuickSet & Manual modes, Gas & Gasless operation, 2T & 4T, Single & Double Pulse with optional PulseMate
- STICK (MMA) with Voltage Reduction Device (VRD) for extra safety, Hot Start & Arc Force
- TIG DC-Lift with Foot Control and Dial Remote Torch compatibility
✅ Advanced MIG Technology
- 4-Roll Wire Drive System ensures smooth, consistent wire feed
- Compatible with 300mm spools (200mm adapter included)
- Adjustable Wire Burnback, Crater Fill function, Side Loader wire installation
- Anti de-spooling safety feature
✅ Modular & Compact Design
- Narrow profile for easy access in constrained areas
- Modular arc station setup with optional 4R-Rover™ remote wire feeder
- Engineered gas cylinder holder supports up to ‘G’ size cylinders
- 4-Point Lifting Lugs for safe transport
✅ Pulse-Ready MIG System
- Add PulseMate™ for single & double pulse MIG welding (sold separately)
- Achieve TIG-like weld appearance using SimplePulse MIG
✅ Professional Accessories & Cable Management
- MIG Gun holder and cable bracket
- Locking brackets to prevent wire feeder sliding
- Low-mount handle for compact 300mm spool compatibility
✅ Warranty & Reliability
- 3-Year conditional warranty (see Cigweld operating manual or website for details)
- Rigorously tested in Australian conditions for long-lasting performance
XF252 Package Contents
- BlueVenom XF252 Power Source
- MIG Gun BZ36 “Style”, 4m, Euro
- Work Clamp, 300A with 4m lead
- Twistlock Electrode Holder, 400A with 4m lead
- Feed Rolls: 0.9/1.2mm V-Groove (fitted), 1.0/1.2mm U-Groove, 0.9/1.2mm Gasless Knurled
- Gas Regulator/Flowmeter
- Quick Connect Gas Hose, 3m
- Operating Manual
Optional Accessories (Sold Separately)
- BlueVenom 4R-Rover Wirefeeder – P/N: W3200401
- BlueVenom PulseMate Pendant – P/N: W4200PM1
- BZL36 Push-Pull Gun, 8m – P/N: W52BP36E8
- BZL24 Spool Gun, 6m – P/N: W52BS24E6
Applications
- Aluminium and stainless steel fabrication
- Automotive and transport repairs
- Industrial and heavy fabrication
- Tight-space welding and modular arc stations
- Single & double pulse MIG welding for precision applications
Why Choose the Cigweld BlueVenom XF252?
The XF252 is designed for professional welders who demand versatility, precision, and reliability. Its narrow profile and modular design make it ideal for confined spaces, while its multi-process capability ensures excellent performance in MIG, STICK, and TIG applications. Add optional PulseMate™ or 4R-Rover™ systems to enhance your welding capabilities and achieve TIG-like welds with ease.
