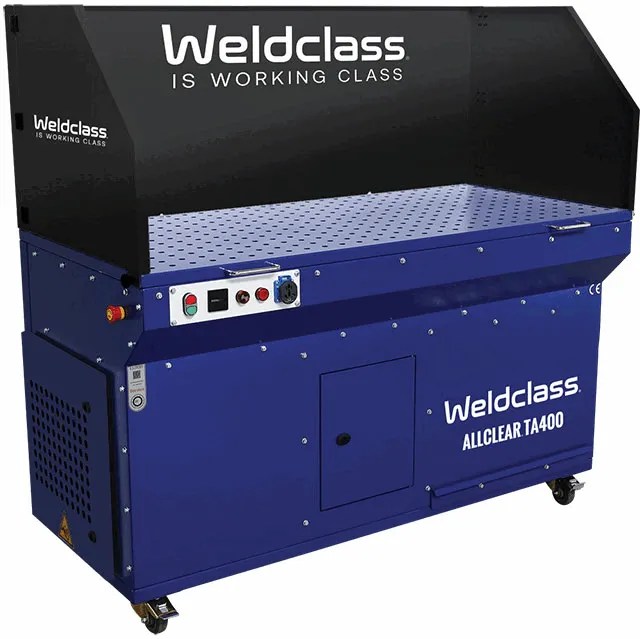

ALLCLEAR TA400 Grinding & Welding Fume Extraction Table – WC-TA400

The ALLCLEAR TA400 Grinding & Welding Fume Extraction Table is a heavy-duty mobile downdraft welding and grinding table designed for demanding fabrication, cutting and metalworking applications.

Powered by a 2.2kW motor, the ALLCLEAR TA400 delivers maximum airflow up to 2,500m³/hr, helping capture welding fumes, grinding dust and airborne contaminants directly through the work surface.

Featuring a spacious 1500 × 700mm workbench, heavy-duty 5mm steel tabletop and 500kg load capacity, the TA400 is built for professional fabrication workshops and industrial welding environments.

Automatic Filter Cleaning

The ALLCLEAR TA400 welding fume extraction table features an automatic compressed-air filter cleaning system that helps maintain consistent suction, reduce filter clogging and extend filter life.

A large 14m² cleanable F9 cartridge filter provides effective filtration, while an optional H13 HEPA filter is available for applications requiring additional filtration.

Heavy-Duty Downdraft Extraction

Fumes, sparks and grinding particles are drawn downward through the work surface and away from the operator’s breathing zone.

Multi-stage spark protection, including a mesh filter and spark deflector, makes the TA400 suitable for applications that generate higher levels of sparks and spatter.

Technical Specifications

Brand: ALLCLEAR Fume Control by Weldclass
Model: TA400
Part Number / SKU: WC-TA400
Product Type: Grinding & Welding Downdraft Fume Extraction Table
Power Supply: 415V Three Phase, 5-Pin
Motor Power: 2.2kW
Maximum Airflow: 2,500m³/hr
Main Filter: Cleanable F9 Cartridge
Filter Surface Area: 14m²
Filter Cleaning: Automatic
Compressed Air Required: 3–4 Bar / 300–400kPa
Work Surface: 1500 × 700mm
Tabletop Thickness: 5mm
Load Capacity: 500kg
Noise Level: 74dBA
Overall Dimensions: 1580 × 780 × 1450mm
Weight: Approx. 300kg
Replacement F9 Filter: 91990116
Optional H13 HEPA Filter: 91990118
