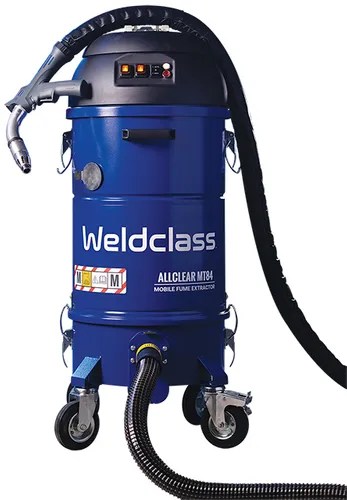

ALLCLEAR MT84 On-Torch Welding Fume Extractor Package with FT36E 4m Torch – WC-MT84K36E4

The ALLCLEAR MT84 On-Torch Welding Fume Extractor Package WC-MT84K36E4 is a heavy-duty, high-performance welding fume extraction system designed for frequent and high-volume MIG and flux-cored welding applications.

This complete package combines the powerful ALLCLEAR MT84 welding fume extractor, an ALLCLEAR FT36E 4m 320A Fume Extraction MIG Torch, and a 3m extraction hose, providing a professional plug-and-play solution for capturing welding fumes directly at the source.

Featuring dual 1.3kW motors, maximum suction pressure of 25,000Pa and airflow up to 380m³/hr, the ALLCLEAR MT84 provides powerful on-torch welding fume extraction for demanding fabrication workshops, engineering facilities and industrial welding environments.

Heavy-Duty On-Torch Welding Fume Extraction

The ALLCLEAR MT84 On-Torch Welding Fume Extractor captures welding fumes through the supplied FT36E extraction MIG torch.

Unlike conventional extraction arms that require repositioning as the welder moves, the extraction point follows the welding torch. This makes the MT84 particularly effective for large fabricated components, long welds, structural work and applications where welding positions constantly change.

Dual-Motor High Suction Performance

The ALLCLEAR MT84 incorporates two powerful 1.3kW motors, providing a combined motor output of 2.6kW.

With maximum suction pressure up to 25,000Pa and maximum airflow of 380m³/hr, the MT84 is designed for frequent, high-volume industrial welding applications.

Operators can select individual motor operation depending on the required extraction performance, helping optimise suction for different welding conditions.

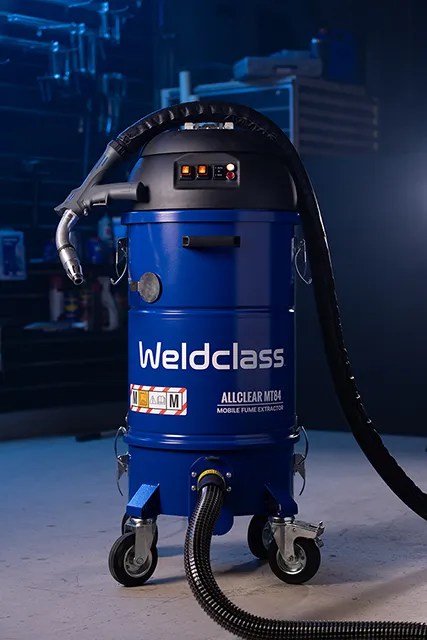

Includes FT36E 4m 320A Fume Extraction MIG Torch

The WC-MT84K36E4 package includes the professional ALLCLEAR FT36E 4m Fume Extraction MIG Torch.

The FT36E features:

• Up to 320A welding capacity
• 4 metre torch length
• Integrated welding fume extraction
• Plug-and-play connection with the MT84
• Removable quick-change pistol grip
• Built-in torch light
• Ergonomic design
• Common BZL 36 style consumables
• Reduced ongoing consumable costs

Automatic Torch-Triggered Extraction

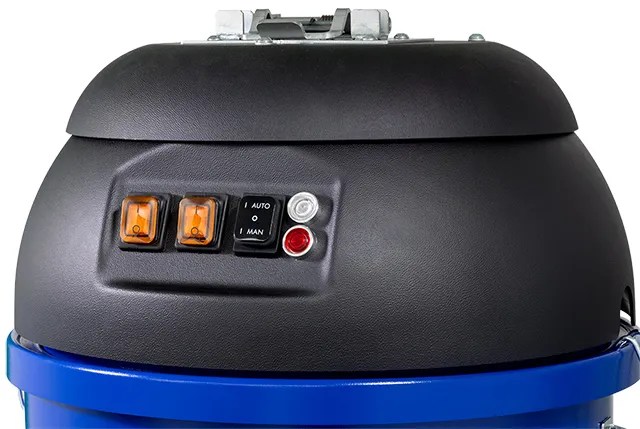

The ALLCLEAR MT84 features Auto and Manual On/Off operation.

When Auto mode is selected, the extractor synchronises with the MIG welding process via the current-sensing system. When welding begins, the extractor automatically activates to capture welding fumes.

This helps simplify operation while reducing unnecessary motor running time.

M-Class PTFE Filter

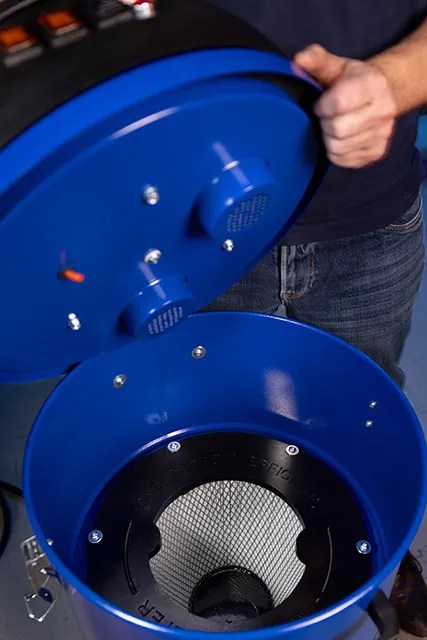

The ALLCLEAR MT84 welding fume extractor uses a high-performance M-Class PTFE cartridge filter with approximately 99.9% filtration efficiency at 0.3 micron.

The large 4m² conical cartridge filter incorporates anti-clog technology designed to maintain airflow and extend filter service life.

Jet-Clean Filter Cleaning System

A major feature of the ALLCLEAR MT84 On-Torch Fume Extractor is its convenient Jet-Clean filter cleaning system.

The filter can be cleaned in-situ without routinely removing the cartridge from the machine. This helps:

• Maintain extraction performance
• Extend filter service life
• Reduce filter replacement costs
• Minimise operator contact with collected welding dust
• Reduce maintenance downtime

A large dust collection bin provides convenient removal of collected contaminants.
