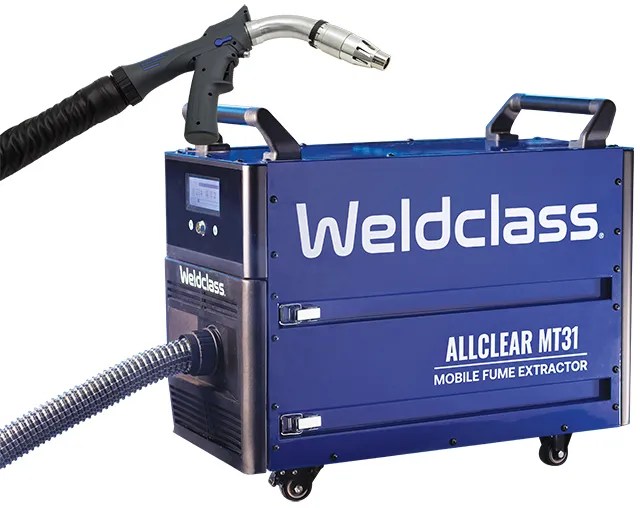

ALLCLEAR MT31 On-Torch Welding Fume Extractor Package with FT36E 4m MIG Torch – WC-MT31K36E4

The ALLCLEAR MT31 On-Torch Welding Fume Extractor Package WC-MT31K36E4 is a complete portable welding fume extraction solution designed for light-to-medium industrial MIG and flux-cored welding applications.

This package combines the powerful ALLCLEAR MT31 welding fume extractor with the ALLCLEAR FT36E 4m 320A Fume Extraction MIG Torch and a 3m extraction hose, providing a practical plug-and-play solution for capturing welding fumes directly at the torch.

Operating from a standard 230V 10A single-phase power supply, the ALLCLEAR MT31 package is ideal for fabrication workshops, engineering facilities, maintenance departments and welding applications where traditional extraction arms are difficult to position.

Capture Welding Fumes Directly at the Source

The ALLCLEAR MT31 On-Torch Fume Extractor captures welding fumes through the extraction MIG torch as welding takes place.

Because the extraction point moves with the torch, fumes can be captured close to the welding arc without constantly repositioning a conventional extraction arm. This makes the system particularly useful for long welds, large fabricated components and changing welding positions.

With maximum suction pressure of 21,000Pa and airflow up to 200m³/hr, the MT31 delivers strong localised welding fume extraction.

Includes ALLCLEAR FT36E 4m Fume Extraction MIG Torch

The WC-MT31K36E4 package includes the ALLCLEAR FT36E 4m MIG Fume Extraction Torch, rated for welding applications up to 320A.

The FT36E offers:

• 320A welding capacity
• 4 metre torch length
• Integrated welding fume extraction
• Plug-and-play operation with the MT31
• Built-in torch light
• Removable fast-change pistol grip
• Ergonomic torch design
• Common BZL 36 style consumables
• Reduced consumable operating costs

Automatic Torch-Triggered Extraction

The ALLCLEAR MT31 welding fume extractor features automatic On/Off operation that synchronises with the MIG torch trigger.

When paired with the supplied FT36E torch, the system provides convenient plug-and-play automatic extraction. The extractor activates as welding begins and shuts down when extraction is no longer required.

This reduces unnecessary motor operation while making the welding fume extraction system easier for operators to use.

Cleanable E12 PTFE Filter

The ALLCLEAR MT31 incorporates a large 6m² E12 PTFE cartridge filter, rated at 99.9% filtration at 0.3 micron.

The cleanable and reusable filter helps extend service life and reduce ongoing filter replacement costs.

A filter-fullness indicator assists with maintenance, while the removable filter and dust collection tray allow accumulated welding dust to be safely removed.

Spark Protection

An integrated spark deflector helps shield the main filter from hot and coarse welding particles.

This assists with:

• Extending filter service life
• Reducing fire risk
• Protecting the main filtration system
• Maintaining consistent extraction performance

Variable Suction Control

Variable fan-speed control allows the operator to adjust the extraction level according to the welding application.

This makes it easier to achieve effective welding fume capture while maintaining comfortable gas shielding and torch operation.

Key Features

• Complete ALLCLEAR MT31 welding fume extraction package
• Part Number WC-MT31K36E4
• Includes ALLCLEAR MT31 extractor
• Includes FT36E 4m 320A fume extraction MIG torch
• Includes 3m extraction hose
• Portable on-torch welding fume extraction
• Standard 230V 10A single-phase power
• Powerful 1.2kW extraction motor
• Maximum suction pressure 21,000Pa
• Maximum airflow 200m³/hr
• Large 6m² E12 PTFE cartridge filter
• 99.9% filtration at 0.3 micron
• Cleanable and reusable filter
• Automatic torch-trigger On/Off
• Variable suction control
• Filter fullness indicator
• Spark deflector
• Carbon filtration for odour reduction
• Dust collection tray
• Maximum suction hose length up to 5m
• Compact and portable design
• Ideal for light-to-medium industrial welding

Package Includes

1 × ALLCLEAR MT31 On-Torch Fume Extractor
1 × ALLCLEAR FT36E 320A 4m Fume Extraction MIG Torch
1 × 3m × 44mm Extraction Hose
1 × E12 PTFE Main Cartridge Filter – fitted
Castor Wheels & Required Connections

Suitable Applications

The ALLCLEAR MT31 On-Torch Welding Fume Extractor Package is ideal for:

• MIG welding
• MAG welding
• Flux-cored welding
• Gasless MIG welding
• General fabrication
• Structural fabrication
• Engineering workshops
• Maintenance welding
• Manufacturing facilities
• Mobile welding applications
• Long or continuous welds
• Large workpieces where extraction arms are difficult to position

For frequent heavy-duty or high-volume welding applications, consider the larger ALLCLEAR MT84 On-Torch Fume Extractor.

Technical Specifications

Brand: ALLCLEAR Fume Control by Weldclass
Model: MT31 Package
Part Number / SKU: WC-MT31K36E4
Extractor: ALLCLEAR MT31
Included MIG Torch: ALLCLEAR FT36E
Torch Length: 4m
Torch Capacity: 320A
Extraction Hose: 3m
Power Supply: 230V Single Phase
Plug: 10A
Motor Power: 1.2kW
Maximum Airflow: 200m³/hr
Maximum Suction Pressure: 21,000Pa
Filter: E12 PTFE Cartridge
Filter Efficiency: 99.9% @ 0.3µm
Filter Area: 6m²
Filter Cleaning: Remove-to-Clean
Maximum Suction Hose Length: 5m
Noise Level: 70dBA
Auto Start: Yes
Extractor Dimensions: 475 × 280 × 600mm
Extractor Weight: 24kg

Why Choose the ALLCLEAR MT31 Package?

The ALLCLEAR MT31 Fume Extractor Package with FT36E MIG Torch provides a complete source-extraction solution straight out of the box.

By combining the MT31 high-vacuum extractor with a purpose-designed fume extraction MIG torch, welding fumes can be captured directly where they are generated. This makes the system an excellent choice for professional welders looking for a compact, practical and efficient alternative to traditional extraction arms.
