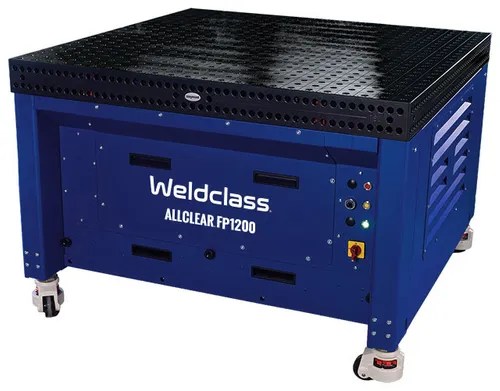

ALLCLEAR FP1200 Downdraft Fixture-Point Welding Table – WFP12T116

The ALLCLEAR FP1200 Downdraft Welding Table WFP12T116 is a heavy-duty welding and grinding fume extraction table designed for professional fabrication, manufacturing, fixture welding and robotic welding applications.

Featuring a 1200 × 1200 × 100mm fixture-point tabletop with 16mm holes, the FP1200 provides a versatile work surface for clamping, positioning, welding jigs, cobots and fabrication fixtures.

Integrated downdraft fume extraction draws welding fumes and grinding dust downward through the work surface, helping capture airborne contaminants directly at the source without overhead extraction arms restricting access to the job.

Key Features

• Heavy-duty downdraft welding fume extraction table
• 1200 × 1200 × 100mm fixture tabletop
• 16mm fixture holes
• Maximum airflow up to 2,300m³/hr
• Large 14m² M-Class cartridge filter
• Cleanable and reusable filtration system
• Filtration efficiency greater than 99%
• Integrated spark deflector
• Large dust collection tray
• Filter-fullness indicator
• Malfunction warning
• 600kg/m² table load capacity
• Excellent access for clamps, fixtures and tooling
• Suitable for cobot and robotic welding
• 415V three-phase operation
• Heavy-duty mobile workshop design

Suitable Applications

The ALLCLEAR FP1200 Fixture-Point Welding Table is ideal for:

• MIG / MAG welding
• TIG welding
• MMA / Stick welding
• Flux-cored welding
• Steel and stainless-steel grinding
• General fabrication
• Fixture and jig welding
• Robotic welding
• Cobot welding
• Manufacturing and production work

Technical Specifications

Brand: ALLCLEAR Fume Control by Weldclass
Model: FP1200
Part Number / SKU: WFP12T116
Product Type: Downdraft Fixture-Point Welding Table
Table Size: 1200 × 1200 × 100mm
Fixture Hole Diameter: 16mm
Power Supply: 415V Three Phase
Maximum Airflow: 2,300m³/hr
Main Filter: M-Class Cleanable Cartridge
Filter Area: 14m²
Filtration Efficiency: >99%
Load Capacity: 600kg/m²
Working Height: Approx. 825mm including tabletop
Noise Level: Approx. 74dBA
